Bay vs. Bow Windows: Cost and Framing Differences
Bay and bow windows both project beyond the exterior wall, but their geometry, unit count, framing, support, finish work, and cost differ. A bay commonly uses three sections with defined angles, while a bow uses four or more units to create a gentler curve. The right choice depends on the wall, room, view, exterior architecture, and the amount of projection the property can accommodate.
Matera Builders has served Ocean City, Avalon, Stone Harbor, Sea Isle City, and surrounding Jersey Shore communities since 1988 as an Andersen Elite Certified Contractor and Therma-Tru Certified Installer.

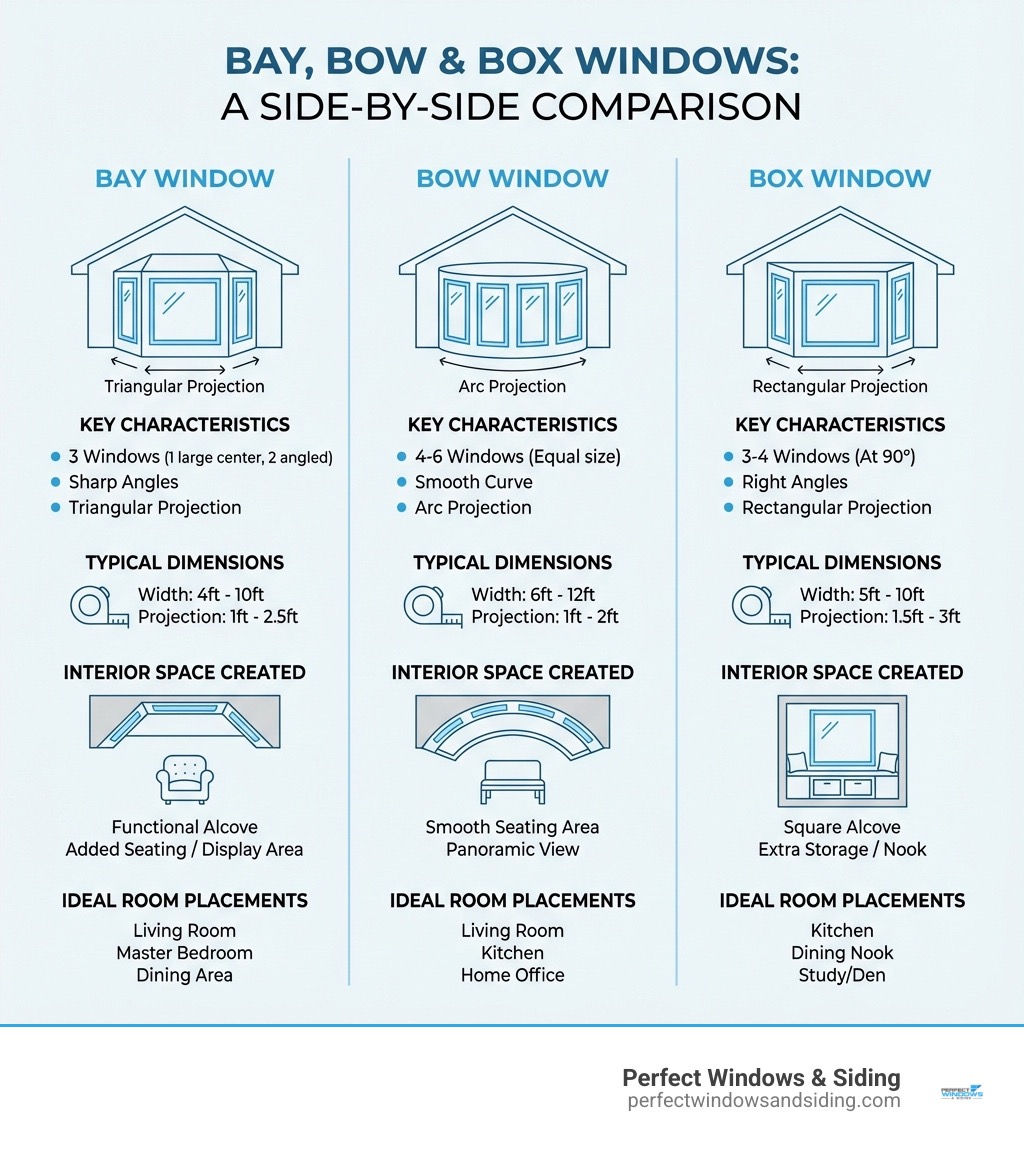

A side-by-side view shows the angular three-panel bay and the smoother multi-unit bow configuration.
How Shape and Unit Count Affect Cost
A three-unit bay typically has a large center window with two angled flankers. A bow uses more equal-size units and creates additional joints, mull connections, and finish transitions. More units and custom geometry can increase material, handling, and installation time. Glass packages, operating sections, grille patterns, Andersen series, roof treatment, seat board, and exterior cladding further influence the final cost.
Framing and Support Differences
Both styles require a level platform, adequate header and side framing, secure fastening, insulation, and a support strategy suited to the projection. A bow’s wider curve may distribute loads differently and require more wall width, while a bay’s sharper angles create more defined side planes. Existing framing, elevation, and projection depth should be reviewed before the product is ordered because the support and finish details cannot be solved by the window unit alone.
Exterior examples demonstrate how bay and bow windows create different projections and architectural profiles.
Choosing for Light, View, and Architecture
Bay windows create a pronounced interior nook that can support seating, display space, or a stronger focal point. Bow windows offer a broader panoramic view and a softer exterior profile that may suit traditional architecture. On a Jersey Shore home, wind exposure, roof and side-panel water management, property setbacks, decks, walkways, and neighboring structures can influence which projection is practical.
Frequently Asked Questions
Is a bow window always more expensive than a bay window? Often, but not always. Size, unit count, customization, support, access, and finish work determine the actual difference.
The Bottom Line
The most useful comparison includes the window units and the structure around them. Matera Builders evaluates framing, exposure, and finish requirements before recommending a bay or bow configuration.
Review Matera Builders’ Andersen windows and doors guide, visit the customer care center, or explore more planning resources on the Matera Builders blog.
